Xtension 32″ Vertical Arcade Machine
What is the Xtension 32″ Vertical Arcade Machine? The Xtension 32″ Vertical Arcade Machine is a compact vertical-format arcade cabinet handmade in the USA by Rec Room Masters. It fits a 32″ display in vertical orientation, ideal for classic shoot-em-ups and vertical scrollers. Compatible with PC, Mac, Raspberry Pi, MiSTer FPGA, Pandora’s Box, etc. Ships flat-packed via UPS Ground to the US and Canada.
Xtension 32″ Vertical Arcade Machine
Compatible With PC, Mac, Raspberry Pi, Pandora’s Box, MiSTer FPGA, etc.
Fits up to a 32″ flat screen VESA mount monitor or TV.
Plays vertical and horizontal games.
Topbox add-on includes 7-inch and 13-inch screens for proper 3 screen pinball set up.
“Plus” controller includes a GRS/tsticks RGB trackball, spinner and 4 to 8 way automatic switching restrictor. It also includes removable joysticks!
About:
Our upright vertical 2-player arcade machine is one of the most versatile arcade gaming systems on the market. Built for vertical games and pinball, the 32” vertical display gives classic arcade titles the screen presence they deserve. Horizontal games are still comfortably playable with a generous 4:3 viewing area, giving you the best of both worlds in one compact cabinet.
We offer 2 controller options including the absolutely stacked “Plus” version which includes everything you could ever want. These controllers connect to your PC, Mac, Raspberry Pi or other devices through a simple USB connection for a variety of endless gaming options. See more detailed information about our controllers in the “Controller Options” section below.
Xtension 32″ Vertical Arcade Machine Features:
- Extremely Sturdy Construction
- Two front speaker ports with speaker grills
- Two controller options (see Controller Options section below for details!)
- Pinball Topbox w/ 7-inch DMD and 13-inch backglass monitors (monitors are included)
- Cutout for single/double coin mech or blank metal coin door (metal door is included)
- Easy to assemble with easy-to-follow video assembly instructions
- Supports up to a 32″ flatscreen monitor/TV (32″ monitor/TV not included)
- Fully enclosed plexiglass monitor protection with built in bezel to hide any gaps
- Sleek, up-to-date visual design
Controller Options
There are 2 different controller models to choose from depending on your budget and needs. Please carefully read the description of all controllers before selecting to ensure that you choose the Xtensionn controller that supports your gaming needs.

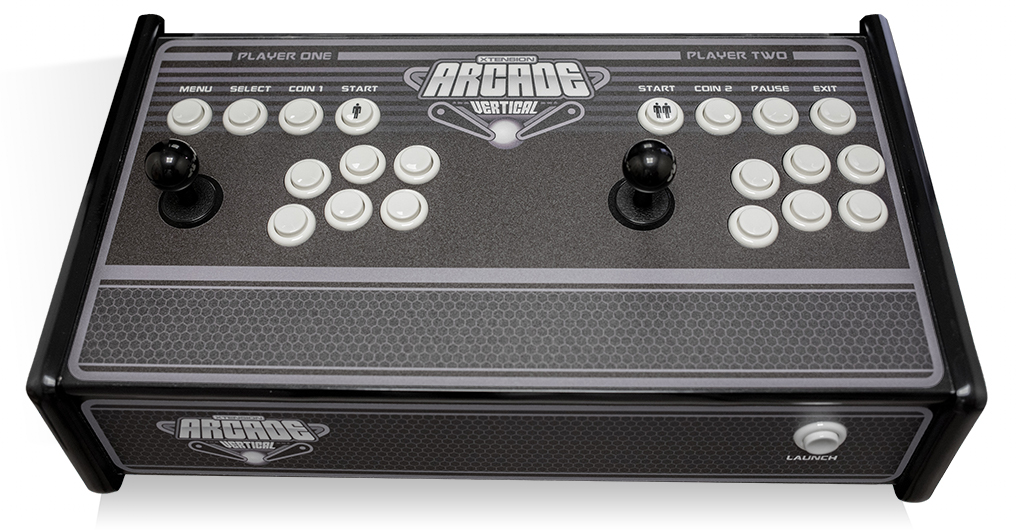

2-Player “Standard” Controller
Features 4 admin/menu buttons, start/coin and 6 action buttons per player, 4 side pinball buttons and front launch button. Authentic Sanwa JLF joysticks! Compatible with PC, Mac, Raspberry Pi, Pandora’s Box, MiSTer FPGA and others. Pre-Configured to MAME Straight Out-Of-The-Box!
3 Switchable Modes! Keyboard / D-Input / XInput
“Standard” Controller Details:
- Quality buttons and joysticks – our “Emulator Edition” controllers come standard with Sanwa JLF joysticks.
- IPAC encoder – best in class encoder. Switch between Direct Input, Xinput and Keyboard modes allowing for the most compatibility across supported devices! Works with Mac, PC, Raspberry Pi, etc.
- Programmable buttons through easy-to-use software interface (available for download)

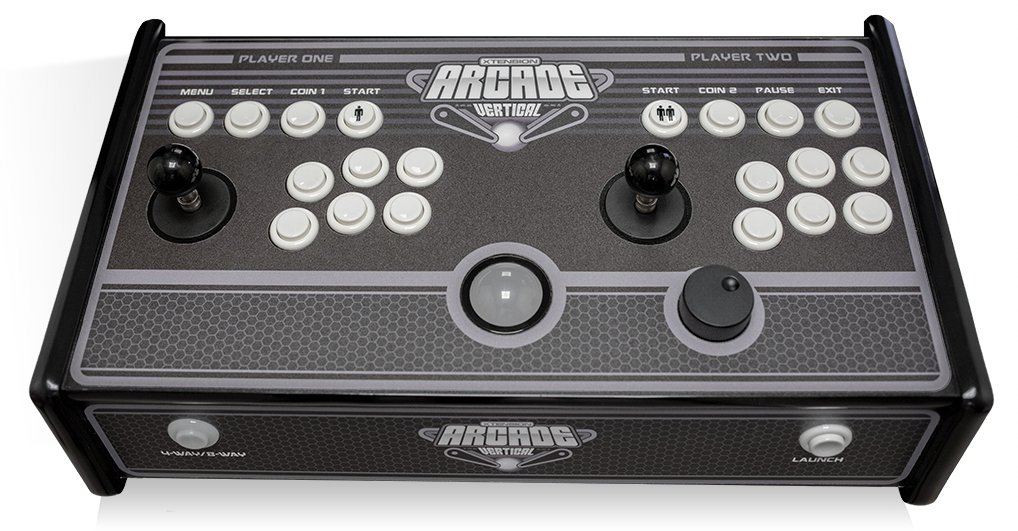

2-Player “Plus” Controller
Includes the same great features as the “Standard” controller shown above however, the “Plus” edition is absolutely stacked with features like an auto switching 4-to-8 way joystick for better retro gaming precision in games like Pac-Man, Donkey Kong, Burger Time, etc. It also includes a spinner, removable joystick shafts and more.
3 Switchable Modes! Keyboard / D-Input / XInput
“PLUS” Controller Details:
- GRS/tsticks branded RGB trackball and spinner.
- GRS/tsticks auto switching 4-to-8 way player 1 joystick.
- Steering wheel spinner attachment for playing driving games!
- Instantly removable joystick shafts to get them out of the way when using the trackball or steering wheel attachment.
- Sanwa joysticks.
- IPAC encoder – best in class encoder. Switch between Direct Input, Xinput and Keyboard modes allowing for the most compatibility across supported devices! Works with Mac, PC, Raspberry Pi, etc.
- Programmable buttons through easy-to-use software interface (available for download).

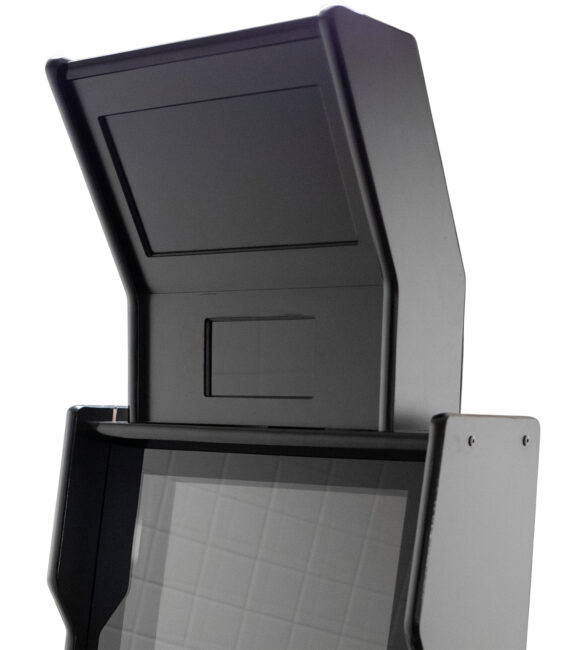

Pinball Topbox Add-on
Our Pinball Topbox Add-on is an absolute must for pinball enthusiasts providing a proper 3 screen set up in a vertical space saving form factor. The topbox comes pre-assembled and includes a 7-inch DMD screen and 13-inch Backglass screen. This topbox is perfect for Visual Pinball, Future Pinball, Pinball FX, PinUP Popper, etc.
Proper DMD and Backglass screens!
Pinball Topbox Details:
- Fully assembled and ready to be easily installed on your Xtension Vertical Cabinet
- Includes 7-inch DMD and 13-inch Backglass screens
- Includes 2 HDMI cables and Display Port to HDMI adapters
- Perfect for a 3 screen virtual pinball set up
Us Vs. Our Competitors:
Here at Rec Room Masters, we believe in offering the highest quality parts. You will not have to take apart your cabinet to replace all of the components with better ones as is the case with many of our competitors. We see this time and time again, due to the fact that many of our competitors include cheap knock-off parts that offer poor performance.
Our cabinets also offer many features that the competition simply does not have. Our easy to remove Xtension controllers can be used as stand-alone controllers should you wish to take them to another room or another location all together! You can also easily swap between any of our Xtension controllers using the same cabinet! These features essentially give you a multi-function cabinet design with the ability to use it as a stand-alone controller or as a full size emulation or console gaming cabinet! Furthermore, because our cabinets are assembled in two halves, they are extremely easy to move and to fit into tight spaces.
Last updated: August 2026
| Weight | 95 lbs |
|---|---|
| Dimensions | 40 × 26 × 9 in |
Recommended Monitors & TVs
Disclosure: This page may contain affiliate links, meaning we get a commission if you decide to make a purchase through our links, at no cost to you.
Detailed Information About Displays
Cabinet fits most 32" standard VESA mount flat screen monitors/TVs. We recommend purchasing a display where the ports are located on the side or bottom as opposed to the back of the display for easier installation.
We include four 30mm M4 screws/washers. If your monitor/TV requires different length screws, you will have to source them from your local hardware store.
If your ports are on the back, you will need longer screws and nylon spacers to create a gap for your cables between the back of your display and the mount. You will also need a 90 degree HDMI or DisplayPort adapter. You can find these products here:
Nylon Spacers:
https://a.co/d/9nxambm
M4 x 55mm Screws:
https://a.co/d/5xUbaYS
90 Degree HDMI Adapter:
https://a.co/d/dec8Cam
90 Degree DisplayPort Adapter:
https://a.co/d/dpMX8ZO
Pinball Topbox:
ABOUT: Our Pinball Topbox Add-on is an absolute must for pinball enthusiasts providing a proper 3 screen set up in a vertical space saving form factor. The topbox comes pre-assembled and includes a 7-inch DMD screen and 13-inch Backglass screen. This topbox is perfect for Visual Pinball, Future Pinball, Pinball FX, PinUP Popper, etc.

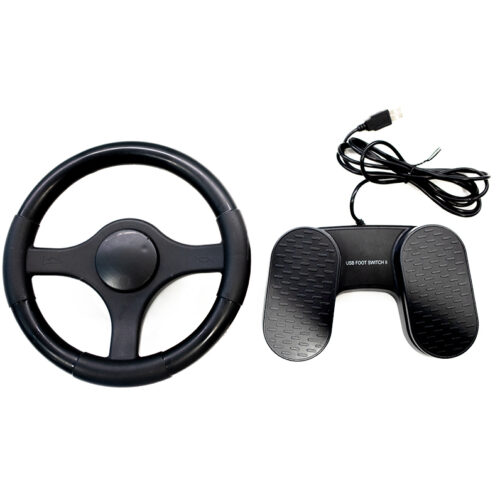

Steering Wheel & Pedals:
ABOUT: Our steering wheel is designed to attach to the spinner included with our "Plus" controller. We provide a software utility for mapping the pedals to any keyboard keys/mouse clicks that may be required by your emulator.

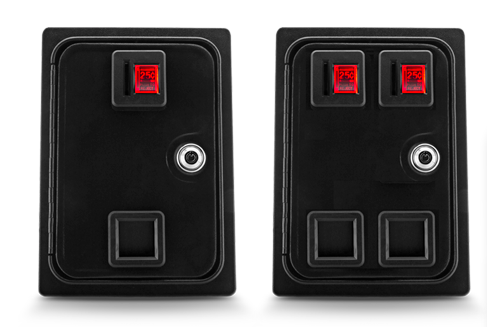

Coin Door:
ABOUT: Choose between single slot or double slot. When you order a single slot or double slot coin door, we will include the extra wires needed for installation. You will need to open the controller to attach the wires to the coin button microswitches. See video at the following link for easy-to-follow instructions: https://youtu.be/XA72Qzw6iVA
Amp/Speakers:
ABOUT: Includes two 4" speakers, two speaker grills with Rec Room Masters logo, amplifier, speaker wire and power adapter.
Speaker specs:
4 inch coaxial speaker
Sensitivity - 91DB/M.W
Frequency response range: 80HZ-20KHZ
Impedance: 4Ω
Rated power: 40W
Amp specs:
2.1 Channel
200W Output (Dual 50W + 100W Subwoofer)
Frequency response range: 80HZ-20KHZ
Subwoofer Frequency & Volume Controls
Main Volume, Treble & Bass Controls
Stock Artwork:
ABOUT: These “stock” controller graphics are included with each cabinet free of charge. Choose between one of the three options. Please be aware that the images below are for color reference only and may not depict the controller you’re shopping for.

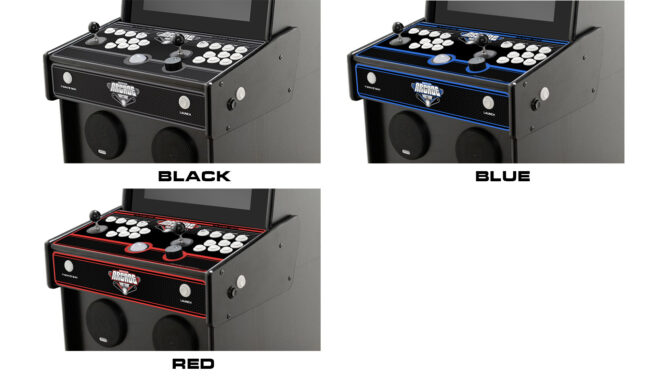

Stock Artwork Color Choices:

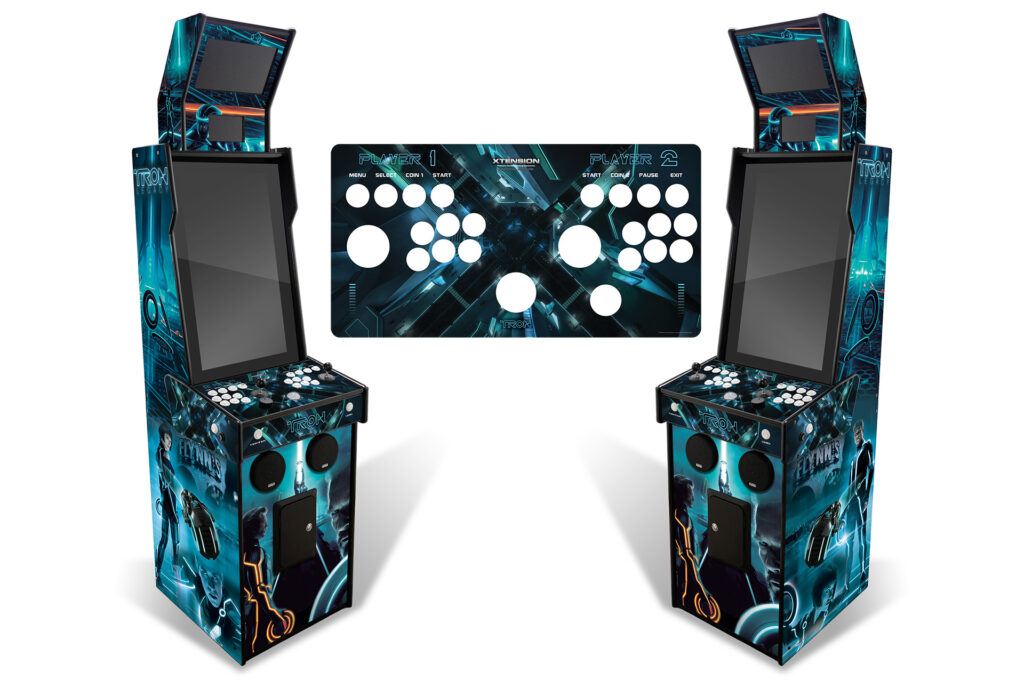

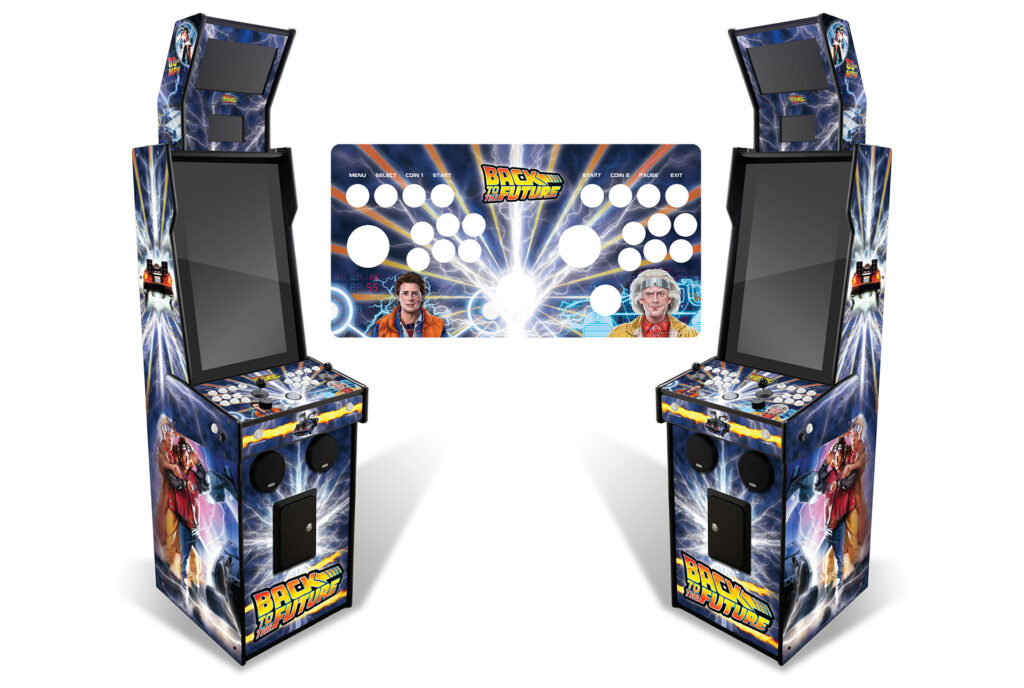

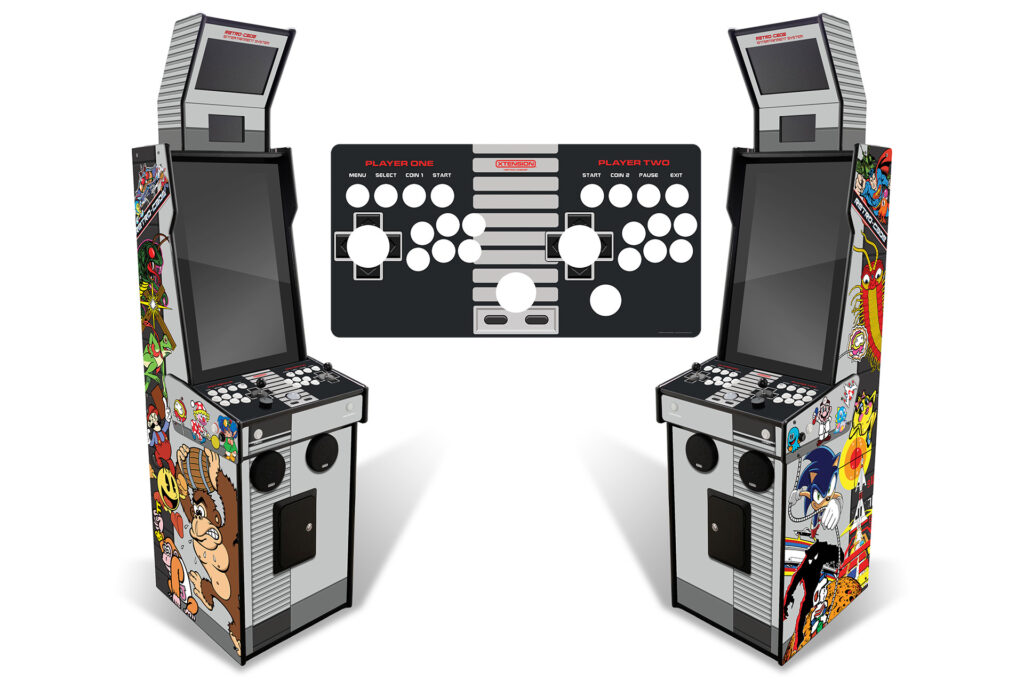

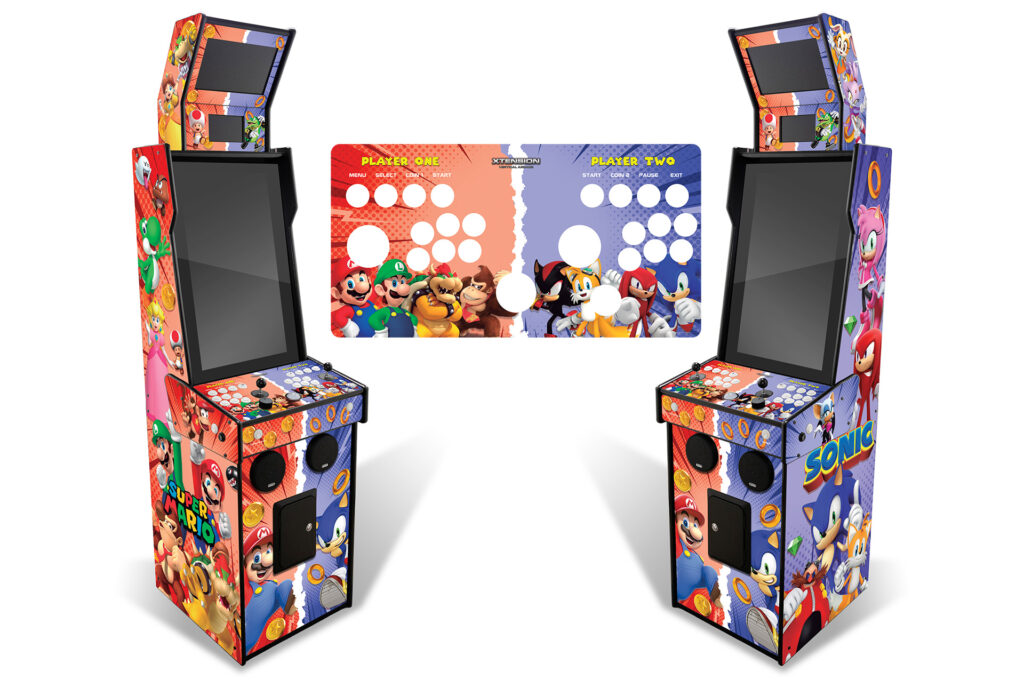

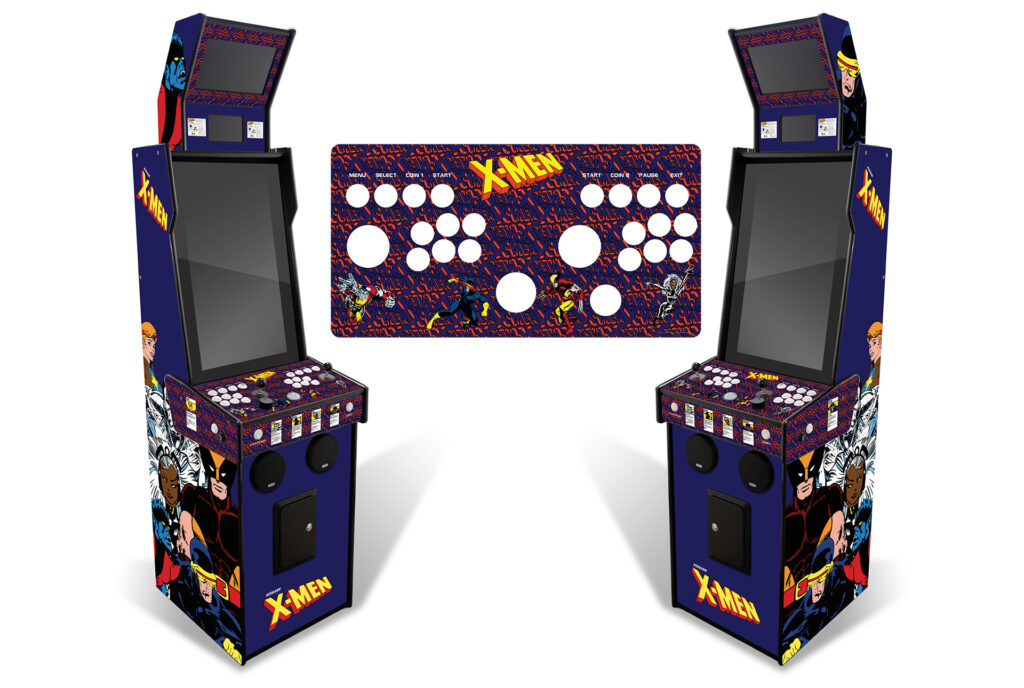

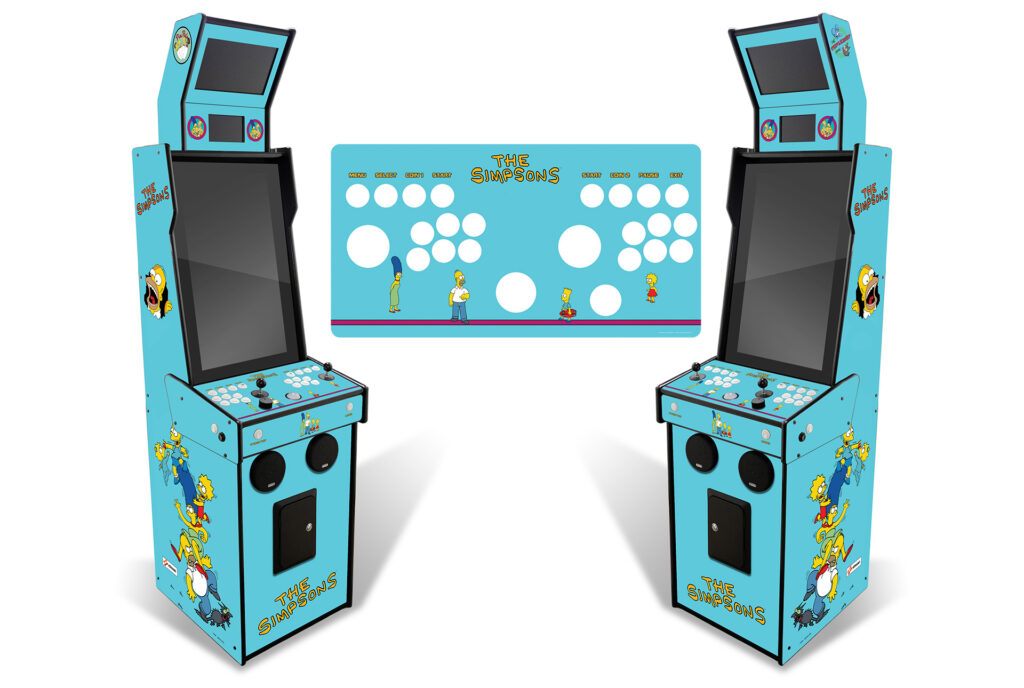

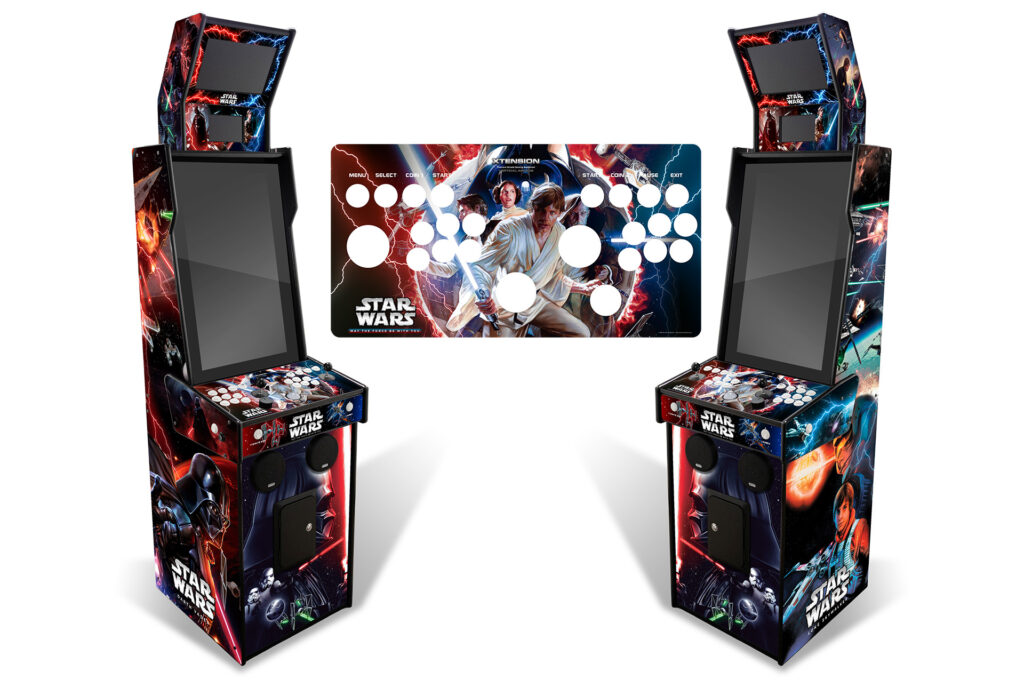

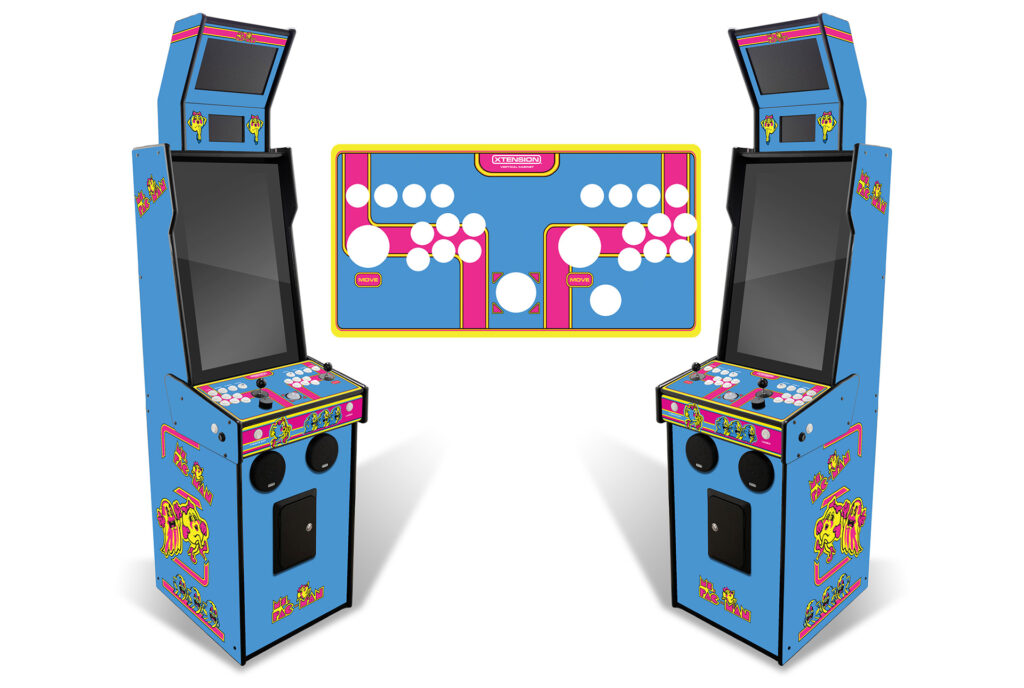

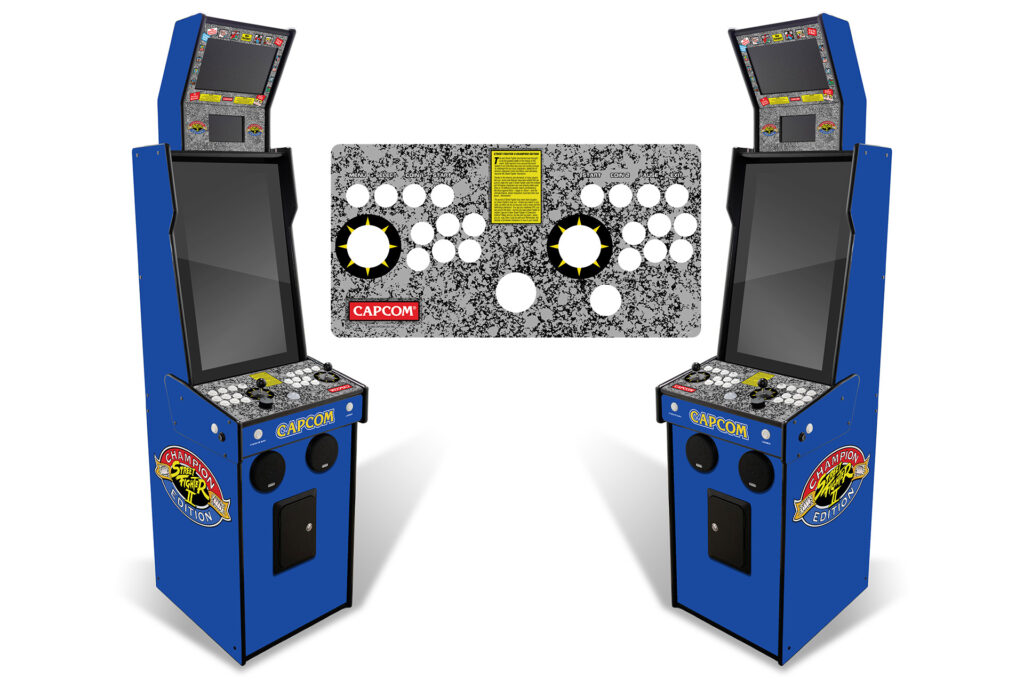

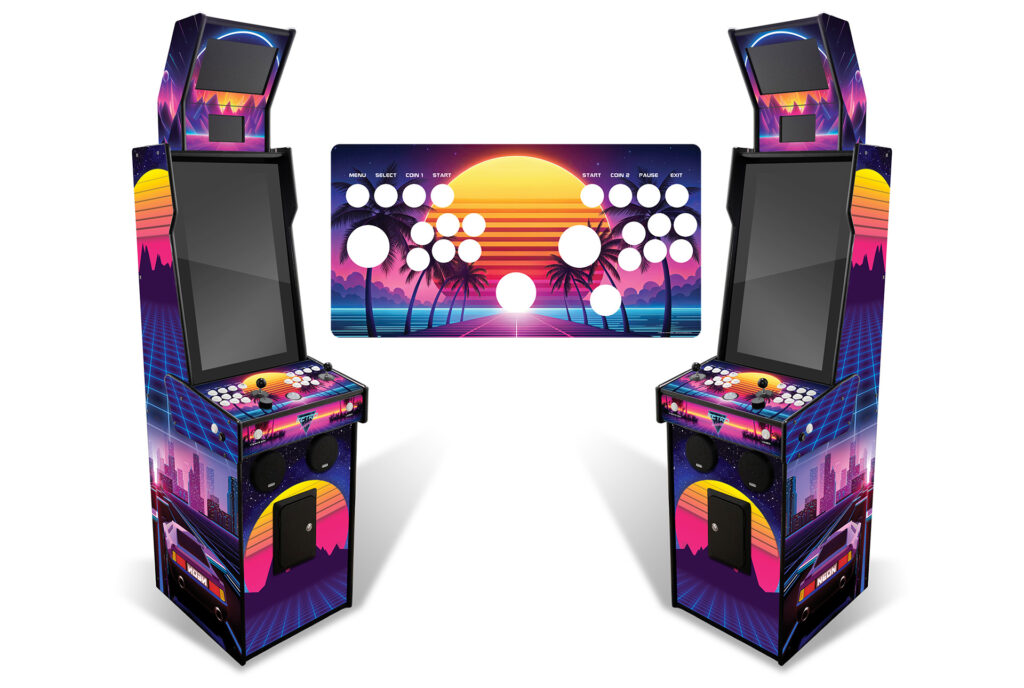

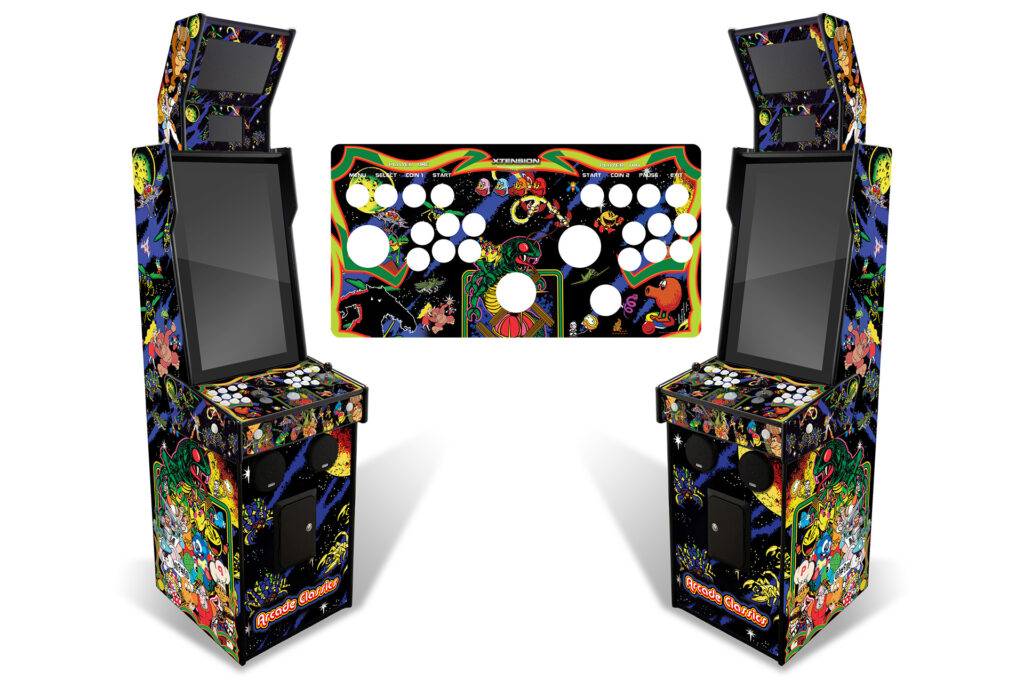

Full Artwork Wraps:
ABOUT: These designs will be printed on adhesive vinyl and shipped in a tube. You are responsible for applying the artwork yourself. See video at the following link for easy-to-follow instructions: click here
Please be aware that the images below are for design reference only and may not depict the cabinet/controller you’re shopping for.

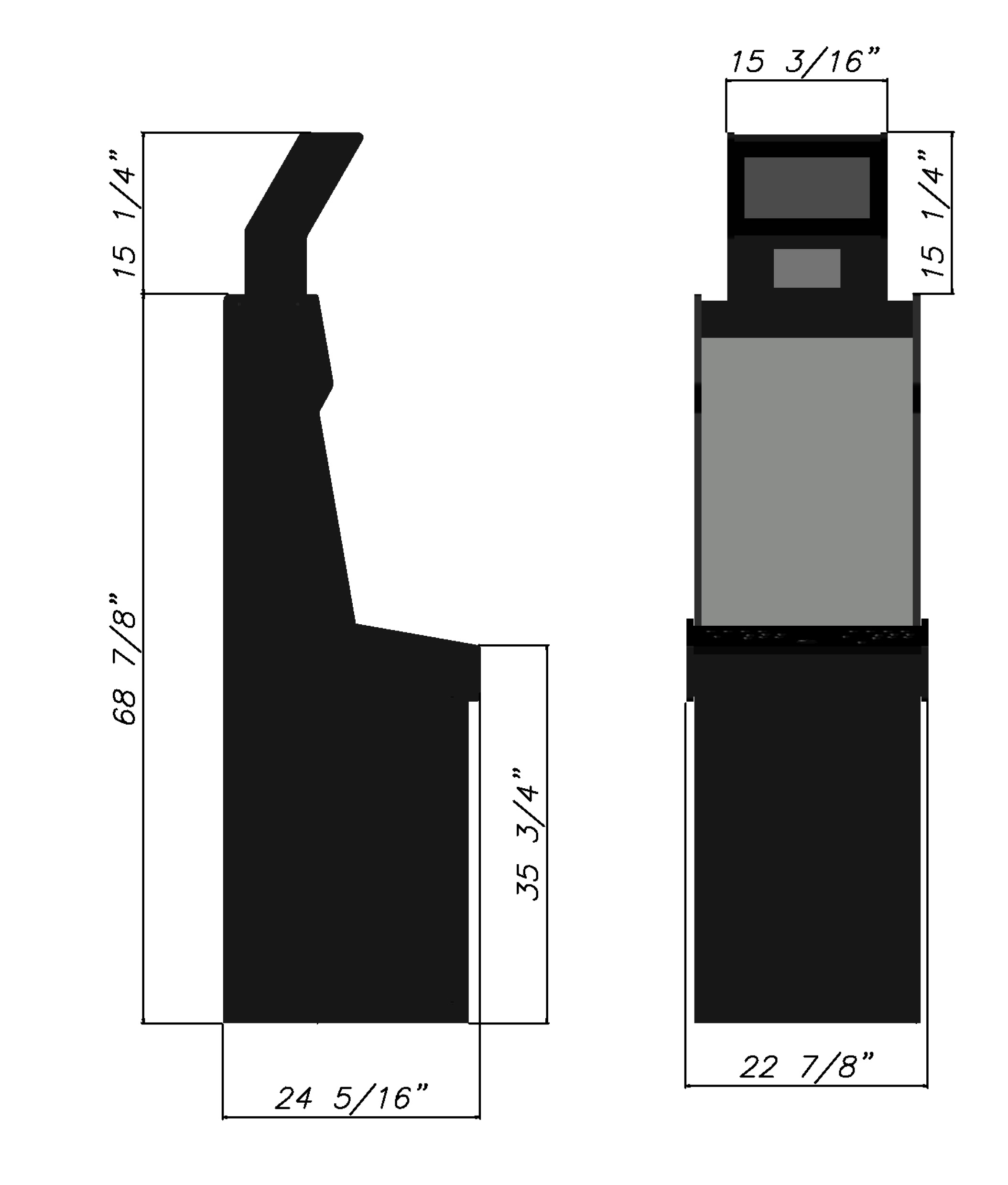

Cabinet Dimensions
| Depth (in) | Width (in) | Height (in) |
| 24 3/8" | 22 7/8" | 68 7/8" (84 1/8" with Topbox) |
Shipping
We Ship UPS Ground, No More Expensive Freight Fees! NOTE: This Item Currently Only Ships Within the United States and Canada.
Purchase With Confidence
Since our cabinets are furniture-based products, unfortunately, transit damage through any shipping carrier can occur from time to time. Although this rarely happens, it is at times unavoidable. If you unfortunately experience any form of damage upon unpacking your cabinet, we will immediately issue a return label and ship you a replacement leaving you no burden of replacing parts whatsoever. Requested transit damage always takes top priority to avoid any further delays in your arcade enjoyment.
